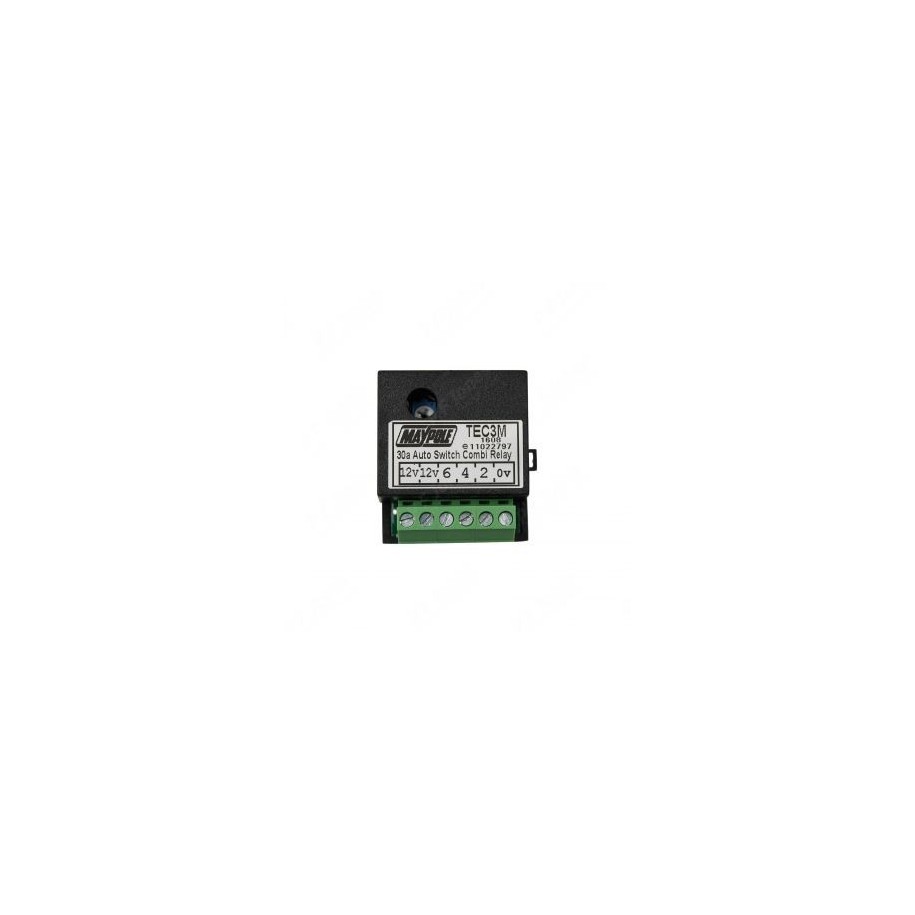

Towbar electrics Charge relay TEC3M
TB TEC3M
£28.00
Inc VAT
QUALITY GUARANTEE
FAST & FREE DELIVERY on order over £75
30 DAYS EASY RETURNS
TEC3M
New
Towbar electrics Charge relay TEC3M
Wiring info as follows
12v Permanent fused live
0v Earth
2 Pin 2 in the 12s socket (grey)
6 Pin 6 in the 12 socket (grey)
4 Pin 4 in the 12s socket (grey)
High Output Combination Caravan Relay with automatic monitoring and switching of supply from car to caravan through double (split charge) relays.
Features
- Very compact but powerful efficient design, giving the largest output in the smallest package
- Automatic monitoring of voltage and current availability from car’s alternator/battery
- No separate signal wire necessary
- Able to switch up to 30a continuously when available from car’s alternator/battery
- Adjustable factory set voltage trip with narrow band hysteresis
- Over temperature protection
- Line voltage drop compensation
- Low voltage drop (around 0.1v) at rated output
- Very high quality micro miniature 30a relays
- Fully snubbed for EMC compliance
