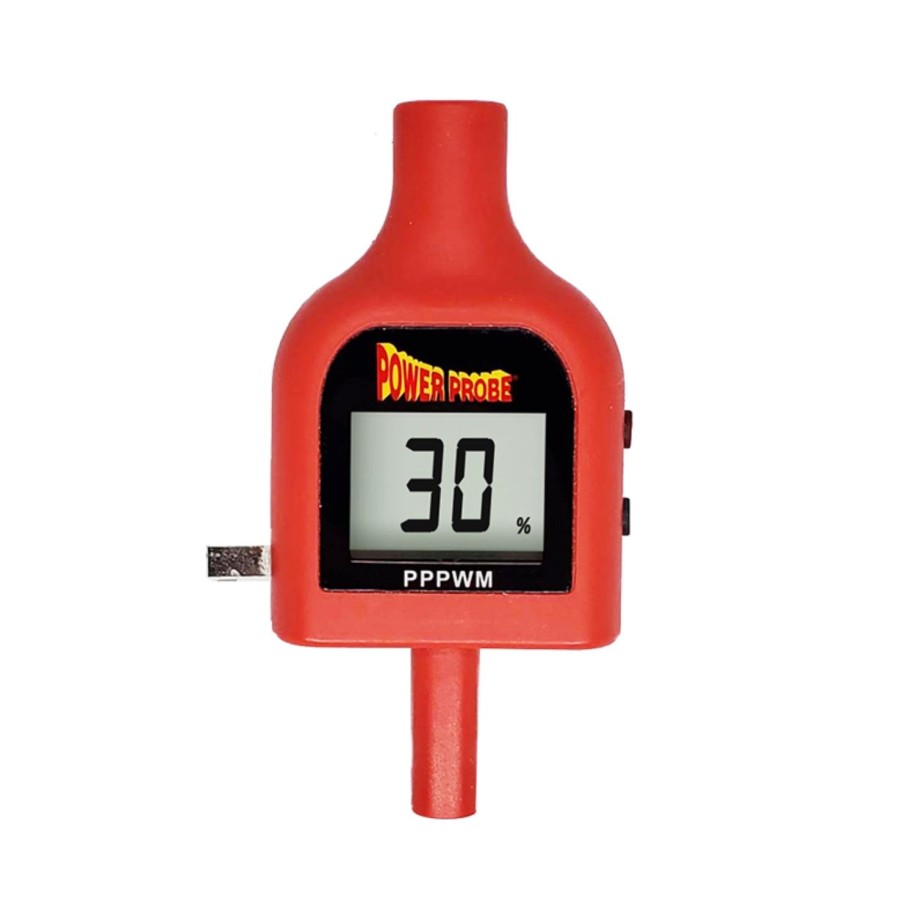

PWM Adapter Tip for Pulse Modulation Width Measurement - Diagnostic Tools

PPPWM: A reliable and versatile pulse width modulation controller, delivering precision power control for automotive and workshop applications.

Key Features:

• ADJUSTABLE DUTY CYCLE from 5% to 100% with side buttons
• COMPATABLE WITH all Power Probe models with a 4mm banana jack in/out
• EASY INSTALL by removing power probe tip and inserting adapter into banana jack
• GREAT FOR diagnosing circuit fan issues
• Voltage Range: Operates between 9V and 24V DC
• Current Capacity: Maximum 40A output
• Frequency Range: Adjustable pulse width modulation (PWM) frequency from 10Hz to 200Hz
• Duty Cycle Range: Adjustable from 0% to 100%
• Input Protection: Overvoltage and reverse polarity protection
• Output Control: Variable output power via rotary dial
• Dimensions: Compact enclosure design for portability
• Connection Interface: Equipped with standard terminals for easy wiring
• Operating Temperature: -20°C to 60°C
• Housing: Durable and lightweight for automotive or workshop use
• Indicators: LED indicators for power status and output activity.
