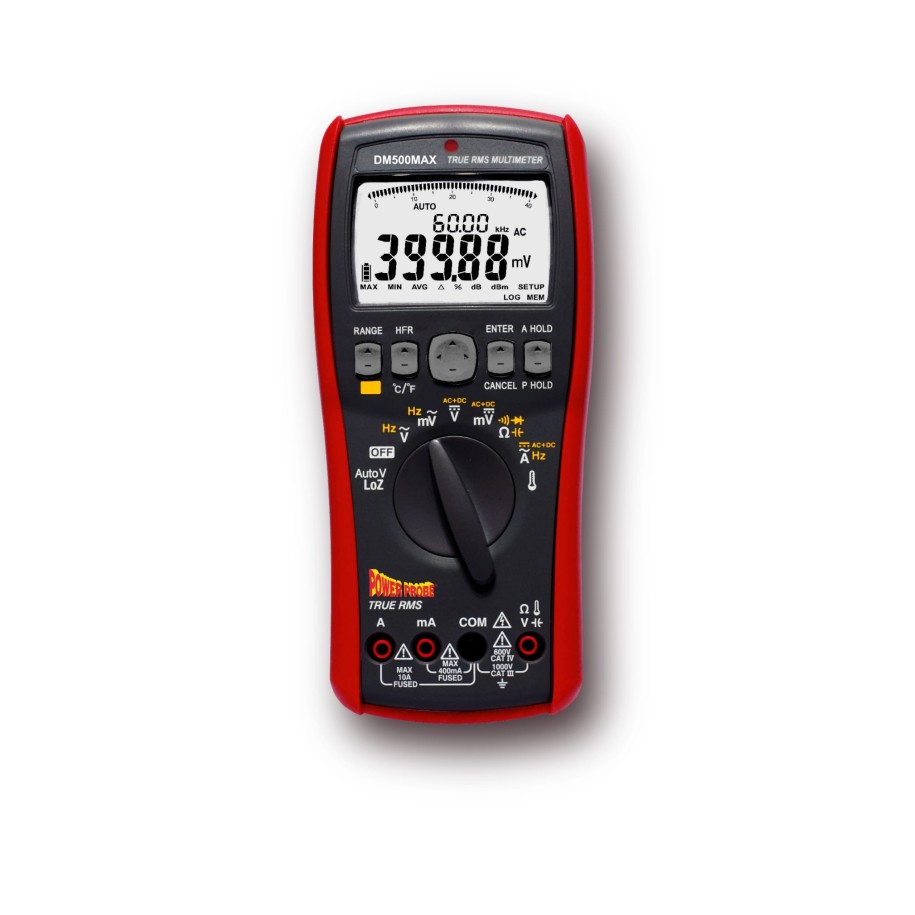

DM500MAX Advanced Digital Multimeter Tester - Diagnostic Tools
POWERPROBE PPDM500MAX
£401.00
Inc VAT
QUALITY GUARANTEE
FAST & FREE DELIVERY on order over £75
30 DAYS EASY RETURNS
PPDM500MAX
New
Product Specifications
- MFG Code
- POW
PPDM500MAX: A powerhouse automotive diagnostic tool combining True RMS, advanced fuse testing, and thermal imaging for precision and efficiency.
Key Features:
- Added Convenience: The Power Probe DM500MAX Automotive Multimeter Voltage Tester has automatic back light that adjusts to changing light conditions; Drop resistant protective rubber holster
- Measuring Voltage: Accurately and automatically determine both AC and DC voltage from 0.01mV-1000V with 600V cat IV and 100V Cat III safety rating for testing vehicle batteries or home appliances
- Testing Current: Correctly calibrate amperage for both AC and DC currents with auto-range metering from 0.01mA-10.00A; Determine whether or not an outlet is active or if solar cells function properly
- For All Electrical Testing: Power Probe digital multimeters dont just measure voltage and amperage but also resistance
- frequency
- continuity
- capacitance
- and even temperature
- Multimeter kit includes a DM500MAX multimeter
- drop resistant rubber housing with kickstand
- magnetic strap
- 2 test leads (1 black
- 1 red)
- 2 alligator clip lead attachments (1 black
- 1 red)
- a USB plug
- K-type thermocouple
- and 4 AA batteries
- Measurement Capabilities: True RMS AC/DC voltage up to 1000V
- DC current up to 30A
- resistance up to 60M
- Automotive Diagnostics: Cranking voltage tests
- alternator charging system tests for 12V/24V
- Fuse Current Testing: Measures current through fuses without removal (2A to 80A)
- Frequency and Duty Cycle: Measures PWM signals up to 40kHz
- duty cycle range: 1%-99%
- Thermal Imaging: Integrated infrared temperature measurement for advanced diagnostics
- Display: 3.5 high-resolution TFT color LCD with customizable interfaces
- Power Source: Rechargeable lithium-ion battery
- Durability: 4-foot drop protection
- IP54 dust and water resistance
- Safety Ratings: CAT IV 600V
- CAT III 1000V certified
- Data Storage: On-device memory for saving multiple test results.
